Practical server builds for file storage, backups, virtualization, Unraid, and small-business applications. Each system is assembled from tested enterprise parts and configured for the workload.
Prices are conservative starting estimates as of July 20, 2026. Refurbished inventory moves quickly, so the exact CPU, drive model, chassis revision, and final price are confirmed before purchase.

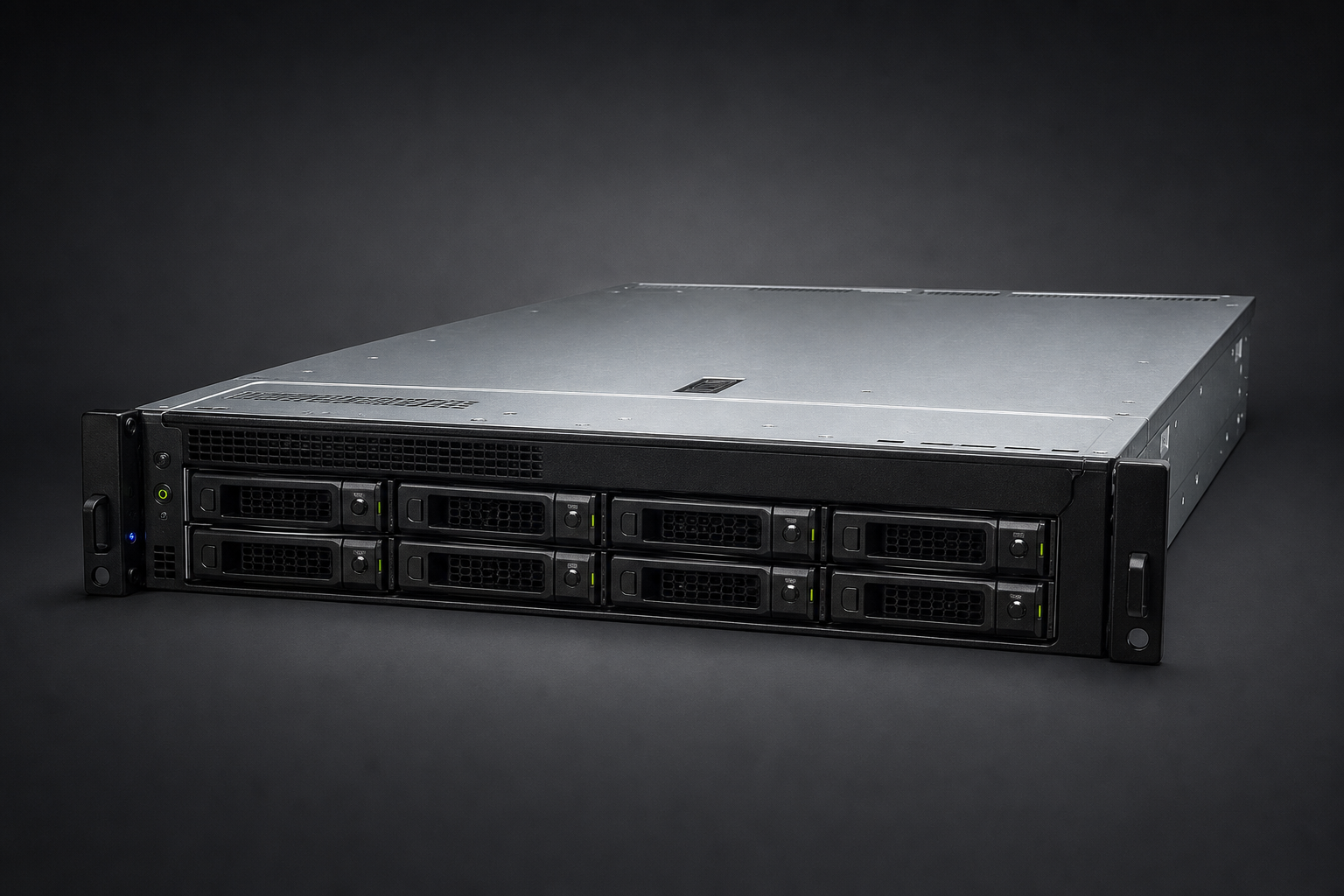

Essential
Backup & File Server
Best for: Shared files, workstation backups, QuickBooks data, and a few lightweight business services.
Protected capacity:16TB raw / about 12TB usable with single parity
Controller: Broadcom/LSI SAS3 HBA in IT mode
Network: Quad 1GbE + dedicated management
Power: Redundant hot-swap power supplies
Management: IPMI 2.0 remote management
Unraid: Lifetime license included
Boot: Dedicated 32GB USB flash drive
Rack: 12U adjustable-depth four-post rack
Power protection: 1500VA/1000W sine-wave UPS
Typical Unraid workloadsShared files and private cloud storagePC and laptop backup destinationOne or two lightweight VMsDocker services such as document management or network utilities
Refurbished platform and drives. The Unraid array, parity, cache, and optional ZFS pools are finalized before delivery.
Protected capacity:72TB raw / about 48TB usable with dual parity
Controller: Broadcom/LSI SAS3 HBA in IT mode
Network: Quad 1GbE + dedicated management
Power: Dual Platinum hot-swap power supplies
Management: IPMI 2.0 with remote KVM
Unraid: Lifetime license included
Boot: Dedicated 32GB USB flash drive
Rack: 12U adjustable-depth four-post rack
Power protection: 1500VA/1000W sine-wave UPS
Typical Unraid workloadsSeveral Windows or Linux virtual machinesQuickBooks and other networked business applicationsPlex, Jellyfin, surveillance, or media storageShared 1GbE file services and larger backup retention
Drive brand may vary among tested CMR enterprise models with equivalent capacity and warranty.
Protected capacity:128TB raw / about 96TB usable with dual parity
Controller: Broadcom/LSI SAS3 HBA in IT mode
Network: Quad 1GbE + dedicated management
Power: Dual high-output Platinum power supplies
Management: IPMI 2.0 with remote KVM
Unraid: Lifetime license included
Boot: Dedicated 32GB USB flash drive
Rack: 12U adjustable-depth four-post rack
Power protection: 1500VA/1000W sine-wave UPS, verified under measured load
Typical Unraid workloadsDense virtualization and many Docker containersLarge media, archive, surveillance, or backup repositoriesHeavier databases and concurrent business servicesMultiple isolated 1GbE links for users, backups, or services
CPU stepping, SSD endurance class, and drive interface are confirmed as a compatible set before ordering.
Assembly & validationFirmware review, memory test, drive health checks, burn-in, and cable/airflow inspection.
Conservative sourcingSupermicro platforms are preferred, using tested refurbishers and warrantied enterprise drives over one-off auction bargains.
Workload configurationRAID/HBA mode, storage layout, and networking are matched to the intended operating system.
Included: Unraid Lifetime license, dedicated boot USB, standard 1GbE server networking, 12U four-post open-frame rack, 1500VA/1000W sine-wave UPS, cage nuts, basic mounting hardware, and normal inbound procurement freight. Not automatically included: enclosed rack cabinet, network switch, customer delivery, sales tax, onsite installation, or data migration.
Capacity and pricing note: Use the controls above to estimate equal-size array drives. Essential uses single parity; Business and Advanced use dual parity. SSD cache is separate. Estimates use current conservative drive costs, the required 30% markup, and the fixed $300 build fee. Actual formatted capacity is lower, and final pricing is confirmed against live inventory before ordering.
Pricing basis
Current estimates use stable refurbished-server vendors for the chassis and warranty baseline, enterprise-drive specialists for storage, Amazon for broadly available SSD comparisons, and eBay Buy It Now listings only to check the wider used-market range. A live quote is required before any hardware is ordered.
